Galvanized Steel Round Air Spiral Duct (SD)
Author:admin Date:2016-7-6 13:40:47 Hits:

Product introduction

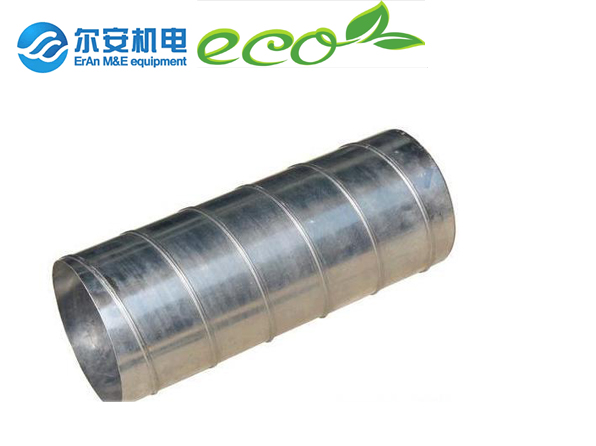

Galvanized Steel Round Air Spiral Duct (SD)

Product description

Round air duct is made of galvanized steel sheet, or stainless steel. Spiral duct can be stronger than circular duct on the basis of same material.

Features:

1. High quality on material, long life

2. Saving material.

3. Least resistance, good tightness

4. Linking by high quality steel flange.

5. Less air leakage, reduce energy consumption, save operating cost.

Specification:

Sheet Thickness

Diameter of Duct (mm)

Thickness

320max

0.5

320-450

0.6

450-1000

0.75

1000-1250

1.0

1250-2000

1.2

2000-4000

As required

Flange Specification

Length of Duct (mm)

Bolt

Steel Flange

280-630

M6

25×3

6360-1250

M8

30×3

1250-2000

M8

40×4



Advantage:

1.  Advanced mold equipment, professional design and assembly line operation make sure high quality and  efficiency, save materials and reduce the investment on projects.

2.  The distribution system is perfect by delivery of all related accessories.

3.  Duct’s size and appearance can be customized according to customer request.

4.  OEM is available.



Application:

It is mainly applied to ventilation, purification, smoke prevention and exhaustion system in open or widen space.


Welcome to contact me for enquiry and latest information.




  • Material: galvanized steel sheet, or stainless steel
  • HVAC system
  • Product description: Air duct is an important part of ventilation system. It can delivery large amount of air volume in a long distance.
