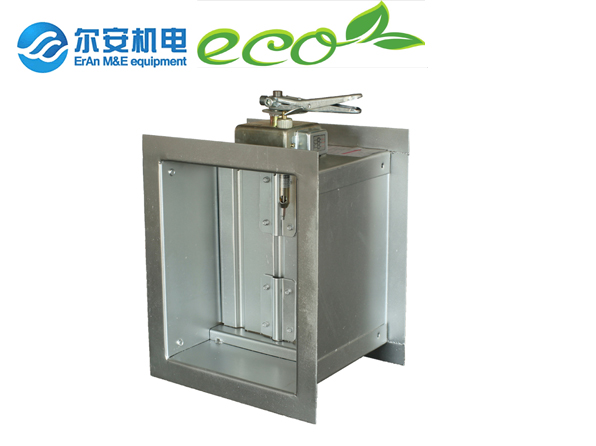

    Motorized Air Fire Proofing Damper (Normal Open) (FH-70)
    Author£ºadmin Date£º2016-7-6 13:25:59 Hits£º

    Product introduction

    Product Description:

    Motorized Air Fire Proofing Damper (Normal Open) (FH-70)

    Installed in the ventilation or air-conditioning systems, usually it is open, once fire occurs, the gas temperature of duct arrives at 70 degrees, and then the fuse protector will be fused and the damper will close under the pull of spring. It can meet the requirement of stability and completeness in a certain time. It can insolate smog and fire outside.

    Application:

    Used in through-wall pipes of ventilation system, which need to be fireproofing to prevent the spread of fire along the duct.

    Features:

    (1) Using galvanized steel as material to make sure good insulation performance, fire & corrosion resistance.

    (2) Duration, long service life.

    (3) Easy installation.

    (4) The flange is bended directly by the frame.

    (5) The valve size and color can be customized according to customer's requirements.

    Advantages:

    (1) Excellent quality control processes, all products have been inspected strictly.

    (2) The quality of products has reached the standard of ¡°Code of acceptance for construction quality of ventilation and air conditioning works" (GB50243-2002) and "Fire dampers for building venting and smoke-venting system" (GB15930 2007).

    (3) Complete accessories production and distribution make it easier to install.

    Specification:

    Place of Origin: Chongqing, China (Mainland)      Brand Name: Eran

    NO.

    NAME

    SPECIFICATION

    1

    Flange width

    Valve side length (MM)

    Width (MM)

    A¡Ü630

    30

    630

    30

    1500

    30

    A>2500

    30

    2

    Material

    Adopt high quality galvanized steel, riveting by non-rivet method

    3

    Valve thickness

    ¦Ä2.0MM high quality galvanized sheet

    4

    Blade shaft

    ¦µ12 round steel

    5

    Shaft sleeve

    Brass

    6

    Steel valve surface anticorrosive disposal disposal

    Pickling, phosphating then spraying

    7

    Temperature-

    fuse protector

    70 degrees

    8

    Control mechanism classification

    Manual on and off device, temperature control

    9

    Micro switch

    Contact capacity 380V  3A

    10

    Connection port

    Contact rating 500V  3A

    11

    Action method

    Temperature-fuse protector functions at 70 degrees, the valve shut down automatically under the pull of spring.

    12

    Reset method

    Manual reset

    13

    Air leakage

    Standard conditions, differential pressure of 300 Pa, air leakage is less than the national standards.

    • 1.1.5-¦Ä2.0mm High quality galvanized sheet
    • 2.After the surface pickling, phosphating coating processing
    • 3.Manual on and off device£¬Warm feeling close
    • 4.HVAC System
    • Product description: Installed in the ventilation, air-conditioning systems.It can insolate smog and fire outside.
